CUT-120

~~$975.00~~ $960.00

Inverter DC air plasma cutter Model CUT-120 Rated input voltage (V) 3PH AC380±15% Rated input power (KVA) 19 Rated input current (A) 29 Rated output 128V/120A Output current (A) 30-120 No-load voltage (V) 310 Rated duty cycle (%) 60% 120A (40*C 10min) 100% 93A Efficiency (%) 80 Protection grade IP21...

Returns

Return this product within 7 days

Shipping

Shipping 4$

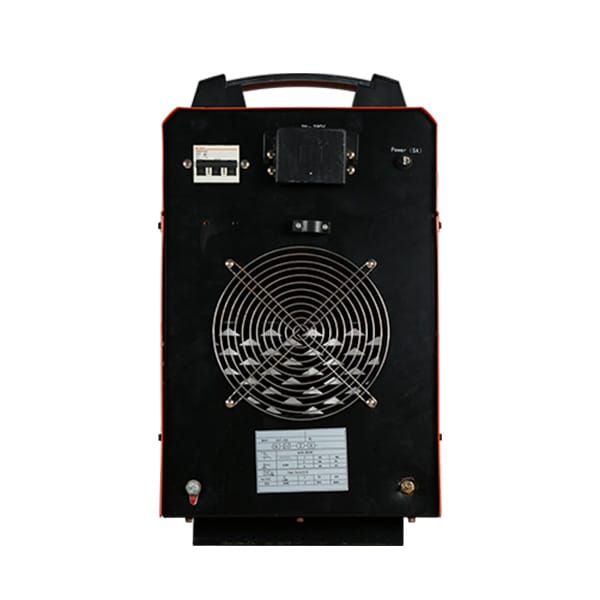

Inverter DC air plasma cutter

Model		CUT-120
Rated input voltage (V)		3PH AC380±15%
Rated input power (KVA)		19
Rated input current (A)		29
Rated output		128V/120A
Output current (A)		30-120
No-load voltage (V)		310
Rated duty cycle (%)	60%	120A
(40*C 10min)	100%	93A
Efficiency (%)		80
Protection grade		IP21
Insulation grade		F
Method of arc start		un contact
Net weight (Kg)		36.3
Gross weight (Kg)		44.2
Dimension of machine (mm)		650x340x590
Dimension of package (mm)		740x600x630
